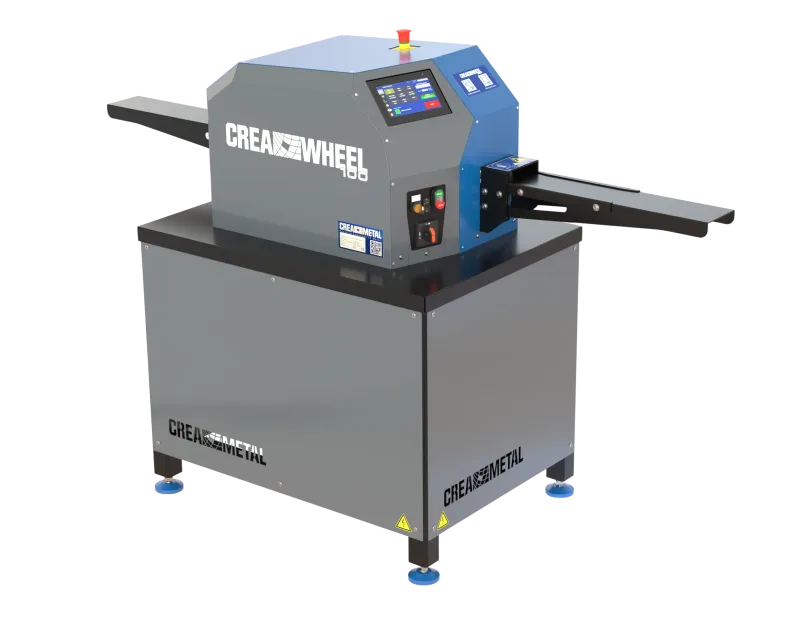

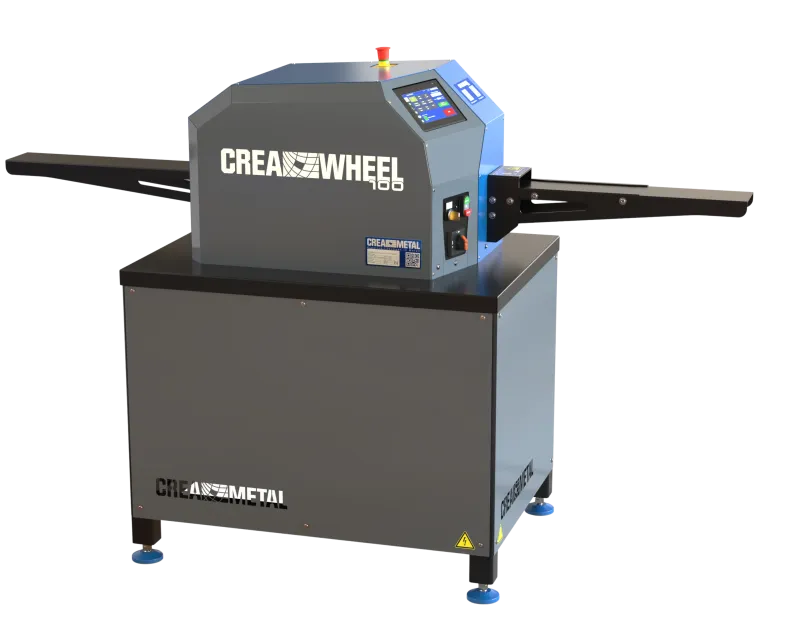

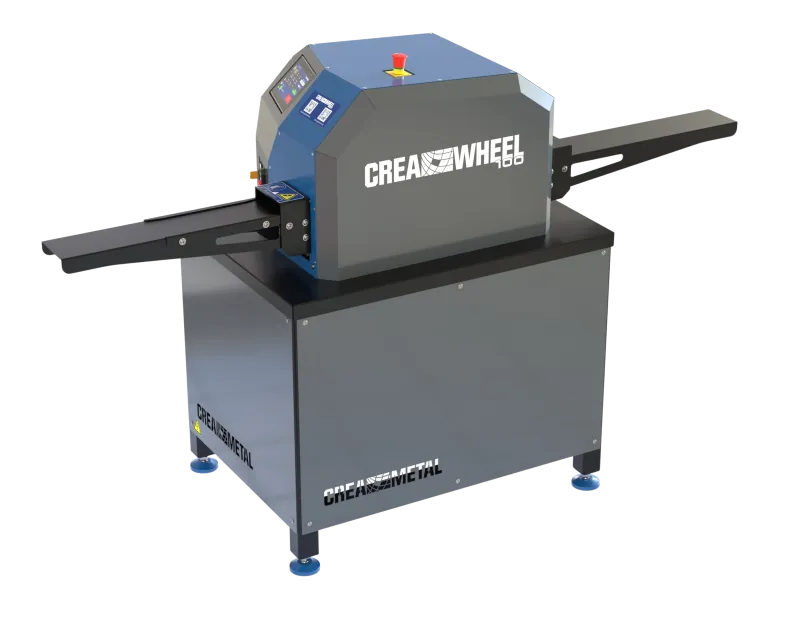

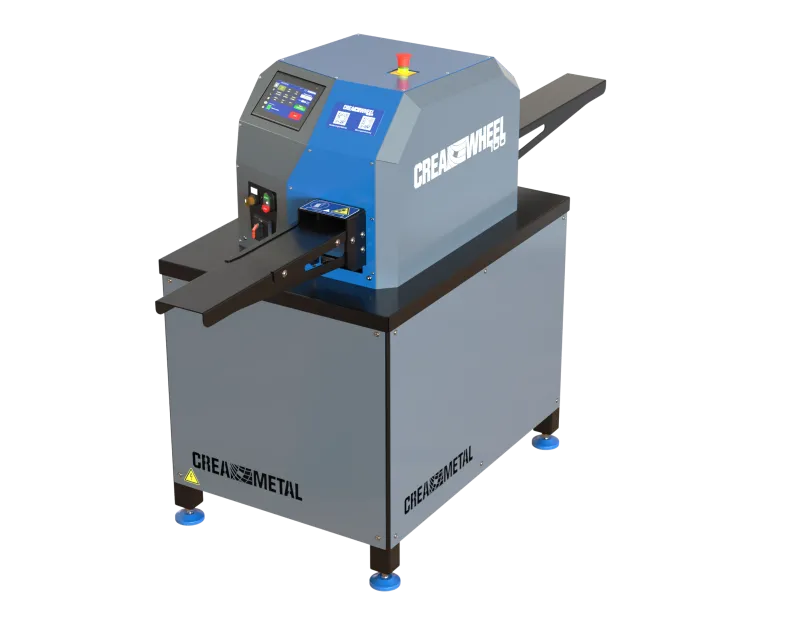

CREA-WHEEL 100
High-performance straightening. Easy to use.
The new standard in straightening.
The new CREA-WHEEL 100 is the perfect mid-range model in the CREA-WHEEL family. It was developed for businesses that want to straighten flat steel quickly, precisely, and cost-effectively—ideal for individual parts as well as for recurring tasks in railing construction and metal and steel fabrication. Larger and more powerful than ever before, yet designed for daily professional use, the CREA-WHEEL 100 bridges the gap between entry-level and industrial models. It requires little space, can be flexibly integrated into existing workflows, and offers just the right combination of performance, precision, and cost-effectiveness for medium and large metal fabrication shops.
Buy now in the shop
CREA-WHEEL 100 in action
High-performance straightening. Easy to use.
Key facts at a glance
Up to 10x Faster Straightening
Boost your productivity: If it used to take you 15 minutes to straighten 1 meter of railing, thanks to the CREA-WHEEL, it will take less than 2 minutes in the future—quickly, precisely, and without hammering.
Easy to Use
The material thickness can be adjusted in just a few seconds. Employees can start working productively right away, without needing extensive training.
Highest Precision
Straight staking, consistent results, and unaltered material strength ensure the highest quality.
Flexible Use
The CREA-WHEEL 100 is versatile and ideal as a supplementary machine for the saw.
Reduce Costs, Increase Value
Straighten flat steel up to 100 x 20 mm right in your own facility and increase your value-added output.
Greater Efficiency in Work Processes
Optimize your processes: Cutting and straightening can take place as part of the same process and be performed by a single person in a seamless workflow. In addition, the CREA-WHEEL reduces strain on employees and makes work more enjoyable.
Technical data
- Min. length
- 200 mm each
- Max. Length
- open
- Max. Thickness
- 20 mm
- Max. Width
- 100 mm
- Connection
- 400 V, 50 Hz, 6.0 kW
- Dimensions
- 750 x 680 x 1200 mm
- Weight
- 380 Kg
- Speed
- 12 m/min
Downloads
FAQ CREA-WHEEL 100
The CREA-WHEEL 100 straightens flat steel and picket fencing up to 100 mm wide and 20 mm thick. The minimum workpiece length is 200 mm. This makes the straightening machine ideal for professional railing construction as well as metal and steel fabrication. To straighten round and square stock as well, the CREA-WHEEL 100 RRM is the right choice.
The CREA-WHEEL 100 straightens flat steel up to 10 times faster than manual methods. With a straightening speed of 12 m/min, it significantly reduces manual labour and increases productivity – precisely, efficiently and without hammering.
The CREA-WHEEL 100 is compact, easy to operate and can be adjusted in just a few seconds. It is ideal for positioning next to a saw, allowing one operator to combine cutting and straightening into a continuous, efficient workflow.
