The plate jig

The CREA-HEAVY plate jig revolutionises the set-up and welding of top and base plates onto beams, supports and pillars. The gauge is light, but nevertheless robust. The height offset of the plate can be set to the desired value with the help of a scale. The jig is quickly positioned with the screw clamp and the plate can then be placed on it.

The compensation of tolerances functions in a simple way. The plate is held in the height, positioned laterally and can be immediately spot welded. Fast - precise – universal.

Fast adaptation

Very simple operation, requires no training time

Mobile workplace

Light, compact construction, the mobile workplace

Ergonomics at the work place

Multiple steps in one

The third hand that’s always missing

Universally applicable

Can be used for all types of supports up to medium size

From practical experience for work in practice

Time is money

Faster assembly, less reworking – time is money

Value added by own company

Less wear and tear

Precision

No marking, simple and fast positioning

Time saving and precise

Technical Data

L / B / H of the device

Weight

For pipes up to

For supports up

Offset

Surface

280 / 300 / 530 mm

6.4 kg

max. 280 mm Ø

no limit

from -15 to +90 mm

electro-galvanised

CREA-HEAVY The plate jig

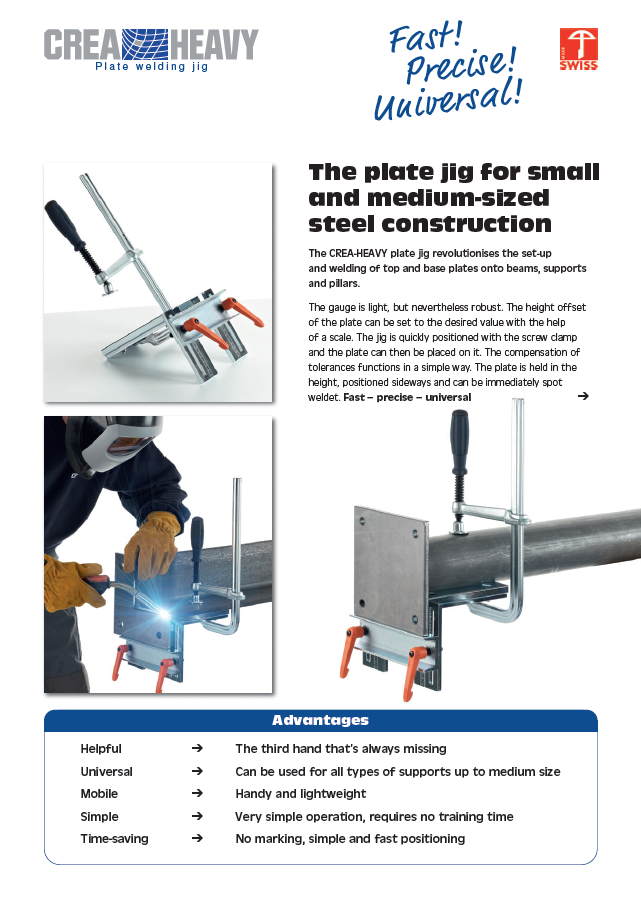

Download CREA-HEAVY Flyer

Supports of all kinds

The CREA-HEAVY can be used with H / U / I beams and square and round tubes, as well as with L-profiles.

Exact set-up

The height offset, either positive or negative, is adjusted using the scale. The CREA-HEAVY is clamped to the support with the clamping device, the plate is then placed on the jig and positioned by the width.

Tolerance compensation

Plates that have to be welded to the support with dimensional tolerances can be easily centred thanks to the jig.

Welding / spot welding

The plate can now be held at the exact position with minimal effort, and can be positioned at the correct location with a few adhesion points.

Universal application

Regardless of the profile to be machined, the CREA-HEAVY is always the right aid for quickly and precisely positioning any plate at the correct location within a short time.

Small investment –
Big profit

The work can be carried out more quickly, and the employees are motivated. You save time and money.
