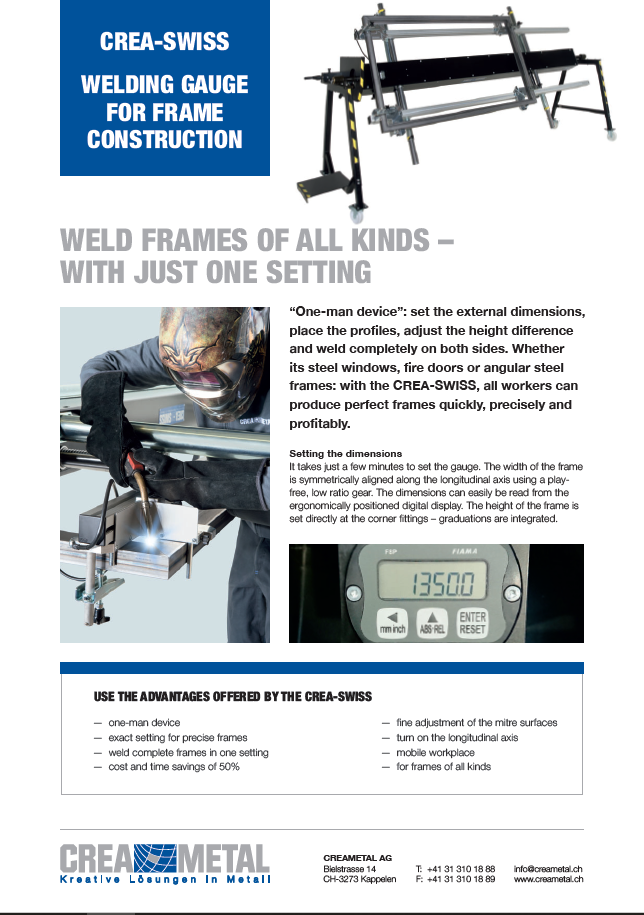

“One-man device”: set the external dimensions, place the profiles, adjust the height difference and weld completely on both sides.
Whether its steel windows, fire doors or angular steel frames: with the CREA-SWISS, all workers can produce perfect frames quickly, precisely and profitably.
Time saved – the setting of a frame is done in a matter of a few minutes
Plane mitre surface – grinding work is reduced to a minimum
Light, compact construction, the mobile workplace
Ergonomics at the work place – no bending over, no overhead welding
Complete the welding work with the piece clamped once
Turn on the longitudinal axis – a frame is welded on both sides
One-man device – the complete frame production by one person
For the production of frames of all types
Easy operation – even semi-skilled staff members and apprentices produce exact frames
From practical experience for work in practice
Mechanical actuation – no wearing or high-maintenance components
50 per cent savings in time and costs
Precision – length, width and diagonals are correct
Quality control – profile cut and the dimensions set have to match
Fine adjustment – tolerances in the profile cross-section are compensated
Maximum frame size
Gauge fully rotatable up to
Minimum frame size
Height tolerance compensation of
Dimensions of the gauge
Weight
Carrying force
Length 3000 mm
Width 2400 mm
a frame width of abt. 2000 mm
Length 470 mm
Width 610 mm
-1 to +1mm
Length 3400 mm
Width 1400 mm
280 kg
100 kg
It takes just a few minutes to set the gauge. The width of the frame is symmetrically aligned along the longitudinal axis using a play-free, low ratio gear. The dimensions can easily be read from the ergonomically positioned digital display. The height of the frame is set directly at the corner fittings - graduations are integrated.
The advantageous construction details become clear once the profile has been placed: while the profiles are tightened, the supports align horizontally to produce a flat surface.
Height differences in the profile geometries can be balanced out using eccentric shafts. This reduces the welding work, and the grinding work in particular, to a minimum. Profile differences of around 1/10 millimetre can simply be levelled out so that you get a flat work surface on both sides.
The mitre surfaces to be welded are freely accessible. After affixing the profile corners, the frame can be turned around on the gauge. In this way, the frame can be welded on both sides with one setting by one person.
We are happy to adapt the welding gauge to your requirements - further technical data on request.
For gate folding: 5-metre welding gauge for frames. The 5-metre welding gauge for frames for your rational, fast, precise and universal gate construction.
We create clever solutions for metal construction
Mario Weber
Owner / managing director
Account manager german-speaking
Switzerland & Tessin
The calibration gauge is located at the bottom of the CREA-SWISS. You can calibrate the gauge yourself with the help of the operating instructions.
It is possible that weld spatters have got caught in the toothed rack. Move the gauge fully apart and clean the toothed rack. If this does not help, set the sliding clutch a little tighter. The procedure has been described in the operating instructions.
Often enough there is one man missing to turn the element, especially in smaller companies. The gauge can be set so fast that a maximum of time saving is achieved especially in case of individual units.
This is easily possible by means of a clamping device made by Bessay Company (order No. VAD).
