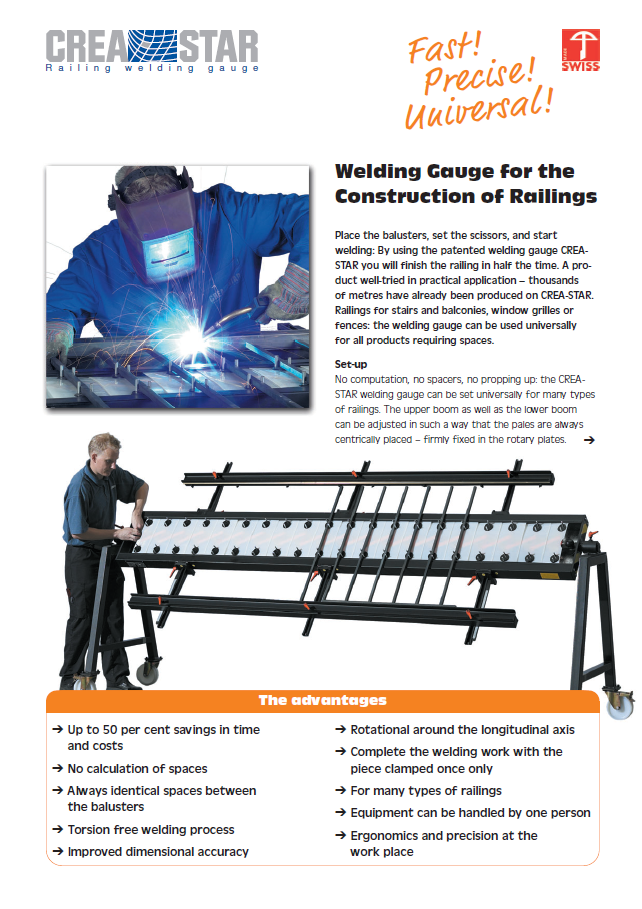

Place the balusters, set the scissors, and start welding: By using the patented welding gauge CREA-STAR you will finish the railing in half the time. A product well-tried in practical application – thousands of metres have already been produced on CREA-STAR.
Railings for stairs and balconies, window grilles or fences: the welding gauge can be used universally for all products requiring spaces.
No calculation of spacings
Calculation of distances with our program
Light, compact construction, the mobile workplace
Ergonomics at the work place – no bending over, no overhead welding
Complete the welding work with the piece clamped once
The railing element can be turned in the gauge and can be welded from all sides
No second person needed to turn the railing
Railings for stairs and balconies, window grilles or fences
From practical experience for work in practice
50 per cent savings in time and costs
Amortized with just 300 m of railing
Improved dimensional accuracy
No added-up errors
Always identical spaces between the balusters
Length / Width / Height
Weight
Load capacity
Spacing of straight railings
Stair railings
Max. number of banisters
Max. diameter of banisters
Lengths of banisters
with extension
Inserting angle for banisters
3300 mm / 1320 mm / 150 mm
215 kg
150 kg
100 - 140 mm
max. 120 mm
20 pieces
30 mm
450 bis 1200 mm
1600 bis 2000 mm
90 degrees, 0 to 8 degrees,
angle of inclination 20 to 42 degrees (depending on the spacing)
No computation, no spacers, no propping up: the CREA-STAR welding gauge can be set universally for many types of railings. The upper boom as well as the lower boom can be adjusted in such a way that the pales are always centrically placed – firmly fixed in the rotary plates.
The mechanical calculator: The patented scissor system is used to set the spacing. The spaces between the balusters are always identical – cumulative errors are impossible. The preparatory work is reduced to a minimum – a universal template for single pieces as well as for series.
The pales are firmly fixed which is a big advantage in particular in the processing of stainless steel. The railing element can be turned in the gauge and can be welded from all sides – easy and without additional helpers.
Railings for stairs and balconies, window grilles or fences: The CREA-STAR welding gauge can be used universally for all products requiring spaces. Special solutions for long elements and fence constructions are available to order.
For individual units or series – the patented CREA-STAR is the well-tried solution for the production of railings. The production times can be reduced by 30 to 50%. Rationalise with moderation – for an economical production of railings.
For example: Mounting table for aluminium and plastic fences. Developed for a leading manufacturer of fence elements: The mounting table for your rational, precise, fast production of fences
We create clever solutions for metal construction
Mario Weber
Owner / managing director
Account manager german-speaking
Switzerland & Tessin
The scissor has been designed in such a way that as many railings as possible can be produced by using it. The design limit has been reached at a clear distance of 120mm (4.72 in.) for sloping railings.
There are special booms for larger railings. Please get in touch with us.
A deviation of a maximum of 2 mm is within the manufacturing tolerance of the railing. Given a larger deviation, the CREASTAR has to be cleaned, and the scissor has to be moved apart and together again completely in order to compensate the springs.
After undoing the three adjusting screws of the support rail, the U profile can be turned. Thus the support area turns to large that hand rails up to 42mm (1.65 in.) can be placed without any problems. The standard brass angle can be replaced by an L profile, if even larger support area are required.
No, they aren’t; the scissor is protected by a special heat-resistant plastic cover. Now and then weld spatters may burn in, but that is only an aesthetic problem. The covers can be replaced.
Often enough there is one man missing to turn the element, especially in smaller companies. The gauge can be set so fast that a maximum of time saving is achieved especially in case of individual units. And: Stair railings with variations at a tenth of a degree and small differences in length in particular, the EDP values can be set in a matter of seconds.
